Shimano FC-T3010 ACERA Crankset Ersatzteile

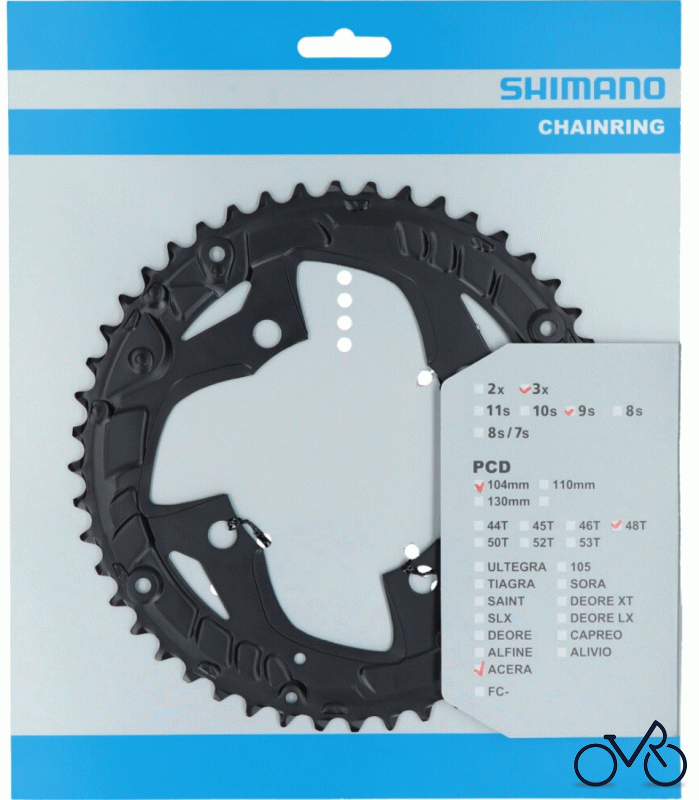

Chainring 48T for Chain Guard B

Artikel Nummer:

Y-1RV98060

BildNr:

18.94 €

für EU incl. MwSt., zzgl. Versand

Der Artikel wurde in den Einkaufswagen gelegt!

1 bis 8 Wochen

Hier finden Sie die Ersatzteilzeichnung für Shimano FC Front Chainwheel - Kurbelsatz, Vorderes Kettenblatt FC-T3010 ACERA Crankset. Wählen Sie das benötigte Ersatzteil aus der Ersatzteilliste Ihres Shimano Gerätes aus und bestellen Sie einfach online. Viele Shimano Ersatzteile halten wir ständig in unserem Lager für Sie bereit.

BildNr	Artikel Nummer	Bezeichnung
1	Y-1PL98010	Crank Arm Fixing Bolt Unit for FC-T3010-8 A Y1PL98010
2	Y-1M098020	Crank Arm Fixing Bolt & Washer for FC-T3010-8 A Y1M098020
3	Y-1FP98010	Crank Arm Fixing Bolt & Cap for FC-T3010 Y1FP98010
4	Y-1NL98110	Double Gear Fixing Bolt (M8 x 8.5 / 1 Unit = 4 pcs.) & Nut (1 Unit = 4 pcs.) A Y1NL98110
5	Y-1LV98060	Inner Gear Fixing Bolt (M8 x 8.5 / 1 Unit = 4 pcs.) A Y1LV98060
6	Y-1ME98020	Chainring 22T & Chain Protector A Y1ME98020
6	Y-1ME98030	Chainring 26T & Chain Protector A Y1ME98030
7	Y-1LD98080	Chainring 32T A Y1LD98080
7	Y-1LD98090	Chainring 36T A Y1LD98090
8	Y-1RV98030	Chainring 44T B Y1RV98030
8	Y-1RV98040	Chainring 44T for Chain Guard B Y1RV98040
8	Y-1RV98050	Chainring 48T B Y1RV98050
8	Y-1RV98060	Chainring 48T for Chain Guard B Y1RV98060
9	Y-1RV07000	Right Hand Crank Arm 165 mm (Silver) for FC-T3010-8 B Y1RV07000
9	Y-1RV07010	Right Hand Crank Arm 165 mm (Black) for FC-T3010-8 B Y1RV07010
9	Y-1RV05000	Right Hand Crank Arm 170 mm (Silver) for FC-T3010-8 B Y1RV05000
9	Y-1RV05010	Right Hand Crank Arm 170 mm (Black) for FC-T3010-8 B Y1RV05010
9	Y-1RV03000	Right Hand Crank Arm 175 mm (Silver) for FC-T3010-8 B Y1RV03000
9	Y-1RV03010	Right Hand Crank Arm 175 mm (Black) for FC-T3010-8 B Y1RV03010
9	Y-1RW07000	Right Hand Crank Arm 165 mm (Silver) for FC-T3010 Y1RW07000
9	Y-1RW07010	Right Hand Crank Arm 165 mm (Black) for FC-T3010 Y1RW07010
9	Y-1RW05000	Right Hand Crank Arm 170 mm (Silver) for FC-T3010 Y1RW05000
9	Y-1RW05010	Right Hand Crank Arm 170 mm (Black) for FC-T3010 Y1RW05010
9	Y-1RW03000	Right Hand Crank Arm 175 mm (Silver) for FC-T3010 Y1RW03000
9	Y-1RW03010	Right Hand Crank Arm 175 mm (Black) for FC-T3010 Y1RW03010
10	Y-1RV07100	Left Hand Crank Arm 165 mm (Silver) for FC-T3010-8 B Y1RV07100
10	Y-1RV07110	Left Hand Crank Arm 165 mm (Black) for FC-T3010-8 B Y1RV07110
10	Y-1RV05100	Left Hand Crank Arm 170 mm (Silver) for FC-T3010-8 B Y1RV05100
10	Y-1RV05110	Left Hand Crank Arm 170 mm (Black) for FC-T3010-8 B Y1RV05110
10	Y-1RV03100	Left Hand Crank Arm 175 mm (Silver) for FC-T3010-8 B Y1RV03100
10	Y-1RV03110	Left Hand Crank Arm 175 mm (Black) for FC-T3010-8 B Y1RV03110
10	Y-1RW07100	Left Hand Crank Arm 165 mm (Silver) for FC-T3010 Y1RW07100
10	Y-1RW07110	Left Hand Crank Arm 165 mm (Black) for FC-T3010 Y1RW07110
10	Y-1RW05100	Left Hand Crank Arm 170 mm (Silver) for FC-T3010 Y1RW05100
10	Y-1RW05110	Left Hand Crank Arm 170 mm (Black) for FC-T3010 Y1RW05110
10	Y-1RW03100	Left Hand Crank Arm 175 mm (Silver) for FC-T3010 Y1RW03100
10	Y-1RW03110	Left Hand Crank Arm 175 mm (Black) for FC-T3010 Y1RW03110
11	Y-1M098250	44T Chain Guard (1 pc.) & Fixing Bolts (1 Unit = 4 pcs.) A Y1M098250
12	Y-1M098260	44T Chain Guard Fixing Bolt (1 Unit = 4 pcs.) A Y1M098260
13	Y-1GX14100	44T Chain Guard A Y1GX14100
14	Y-1PN98200	48T Chain Guard (1 pc.) & Fixing Bolts (1 Unit = 4 pcs.) A Y1PN98200
15	Y-1D298010	48T Chain Guard Fixing Bolt (1 Unit = 4 pcs.) A Y1D298010
16	Y-1PM11000	48T Chain Guard Y1PM11000
